W600
D700
H1865

169

110

+5/+20

  • General Information

    Internal Dimension: W500 x D545 x H795/900mm
    Interior e Exterior: Chapa Plastificada (Skinplate Preto)
    Insulation: Polyurethane Water Base 50mm
    Cold: Ventilated with Automatic Defrost
    Shelves: Sliding in Wood + 1 Fixed in the Bottom
    – 9 x (453x543mm) + 1 (490x390mm)
    Door: Glass with UV Protection
    – Reversible Glass
    Lighting: Ambar LED
    Anti-Vibration System
    Active Charcoal Filter
    Locker Included
    4 Rollers + 2 Levellers
    Temperature: Set by User
    – 2T – Two Chambers Controlled Separately
    – Upper Chamber: +8°/+20°
    – Lower Chamber: +5°/+15°
    Bottle Identification Cards

  • Technical Data

    Code: 800934_500

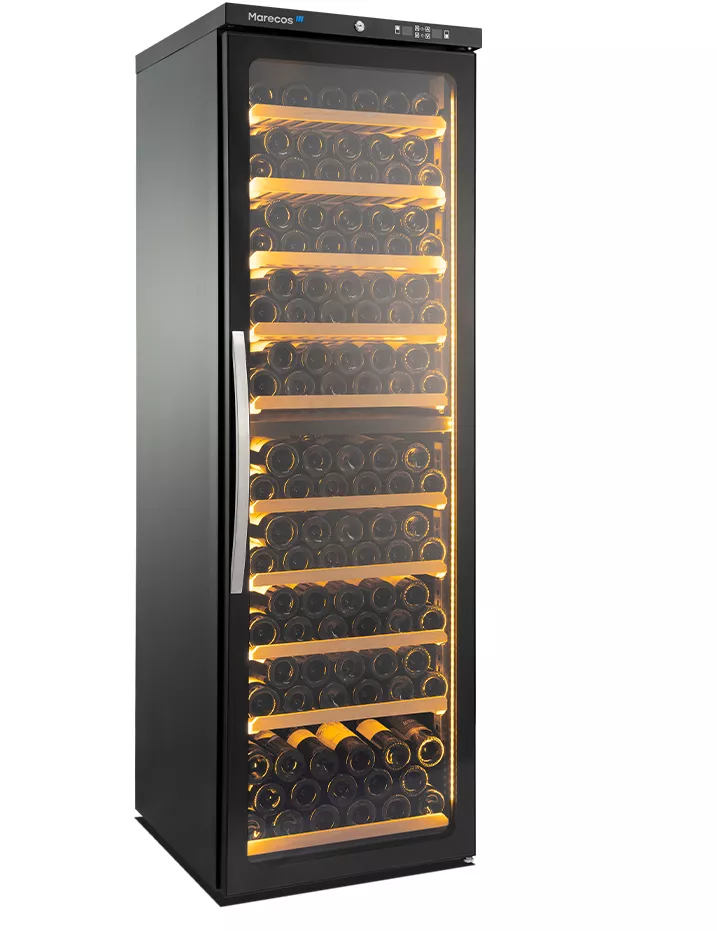

    Model: CV 450 PV 2T Exclusive

    Width: 600mm

    Depth: 700(+40)mm

    Height: 1865mm

    Capacity: 169 Garrafas

    Weight (Kg): 110

    Power: 130W

    Tension | Freq.: 230V - 50Hz

    Consumption: 968 kwh/year

    Shelves: 9 + 1

    Noise Level: < 50 dB

    Gas: R 600a

    Climate Class: 4

    Temperature Class: H1

    Energy Class: B

  • Shipping Information

    Weight with packaging (Kg): 121

    Dimension (mm): 620 x 730 x 2025

    Load capacity (unit):

    TIR | 20” | 40”
    63 | 27 | 57

  • Acessories

    Wood Basket
    Cod. 003358_100

    Wood Drawer Kit + Sliders
    Cod. 129040_2

    Small Wood Shelf
    Cod. 007125_300

    Large Wood Shelf + Sliders
    Cod. 129040

    Accessory for Tilting Bottles
    Cod. 003357

    Active Charcoal Filter
    Cod. 129042

    Pack 10 Identification Cards
    Cod. 129041
